Wöhler M 603 Leakage Tester

Brand:

  • Wöhler
The Wöhler M 603 Leakage Tester is DVGW-certified and TÜV-tested, so that your measurement meets the requirements of all clients, including utilities. You make a sustainable investment in a single device and can thus safely carry out all tests in accordance with TRGI 2018 (gas), DIN EN 806 (drinking water) and DIN EN1610 (waste water). These can be carried out quickly and easily, because the automatic measurement process guarantees simple, standard-compliant and error-free measurement. Incidentally, you can also locate metallic pipes with the device and an additional locator. A leakage tester for countless applications that will accompany you for many years.

From beginners to professionals
complex tasks made easy and accurate

Intuitive handling
with the large 5″ color touchscreen

Normed measurements
based on fully automated measurements with pumps included

Data management
via PC or at your mobile device
Usability Test

The usability test can be carried out safely with operating gas so that the gas line does not need to be flushed.

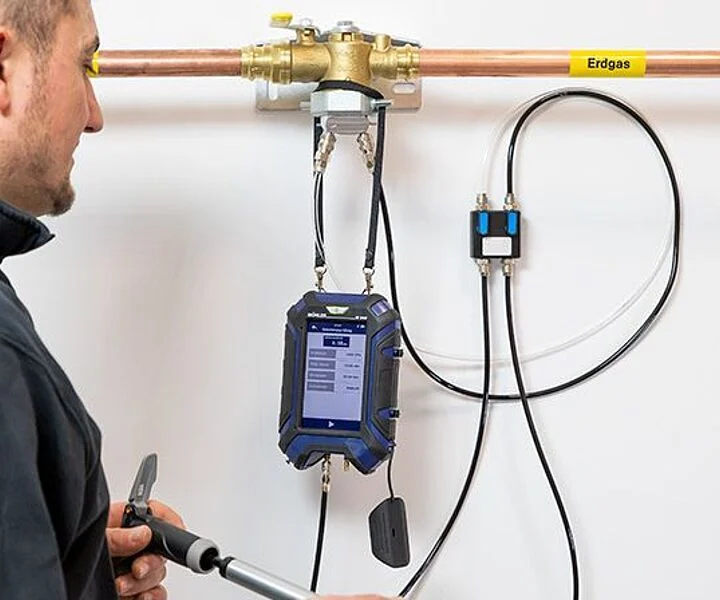

Stress test

With the appropriate accessories, the newly installed gas line is easily pressurised with the test pressure for the stress test (1 bar).

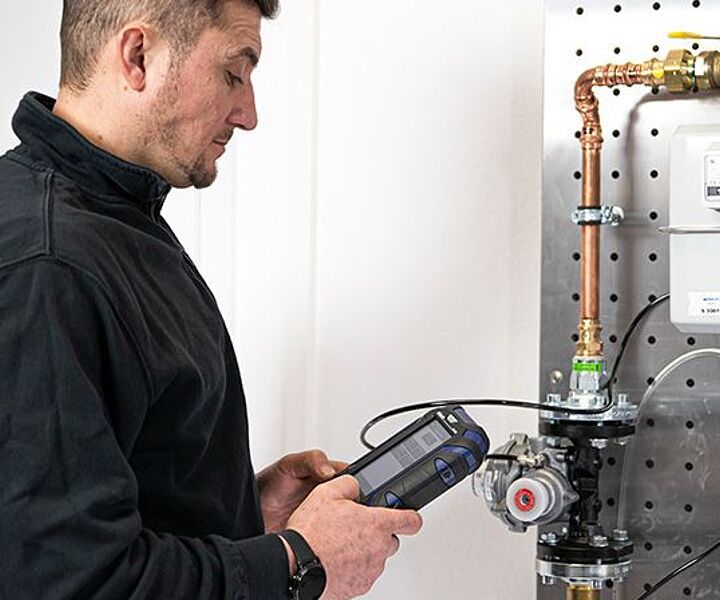

Gas regulator test

The functionality of the gas regulator can be tested in a few minutes.

Further measurements

Further pressure and temperature measurements (as well in combination with external probes)

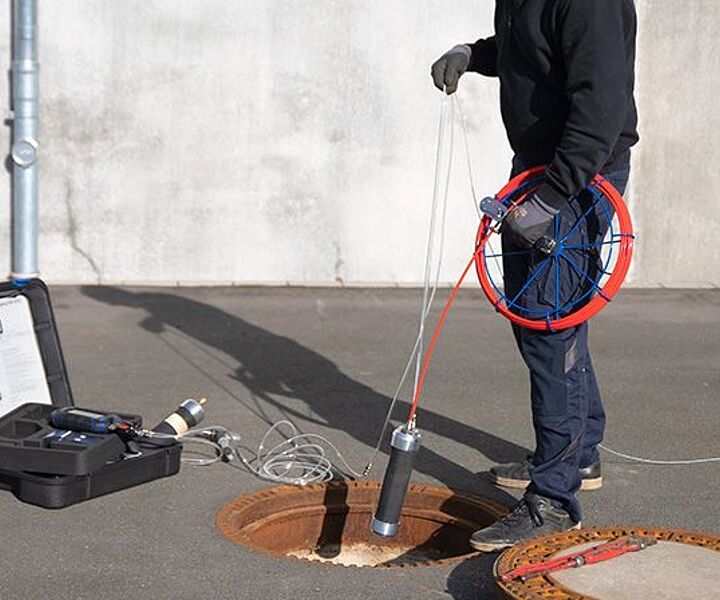

Tightness test on waste water pipes

Before the leak test on waste water pipes according to DIN EN 1610, the test sections are sealed.

Optional extension

The Wöhler M 603 Leakage Tester easily measures up to 3 bar. With the small Wöhler SC 660 Smart Connect, the range is extended to 60 bar.
